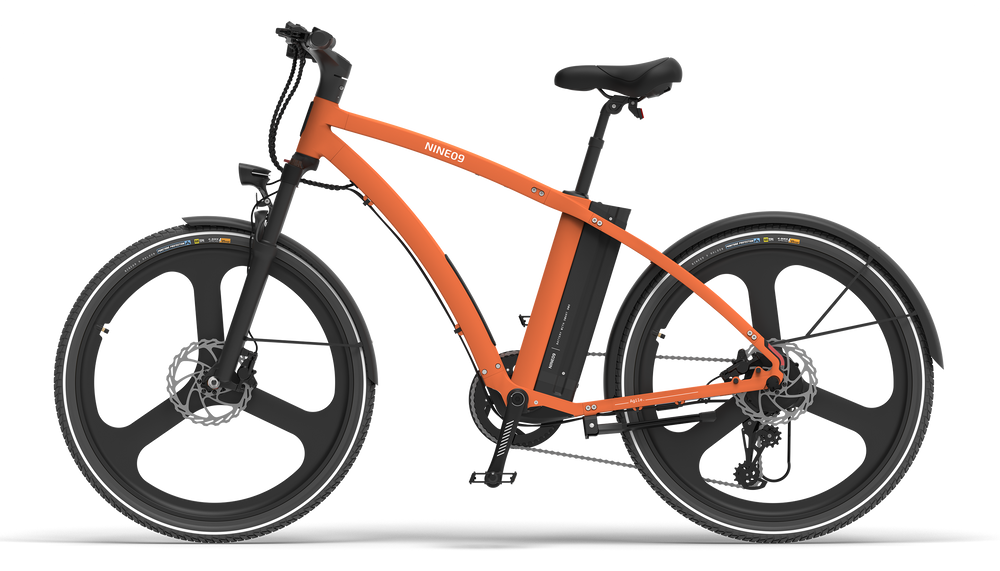

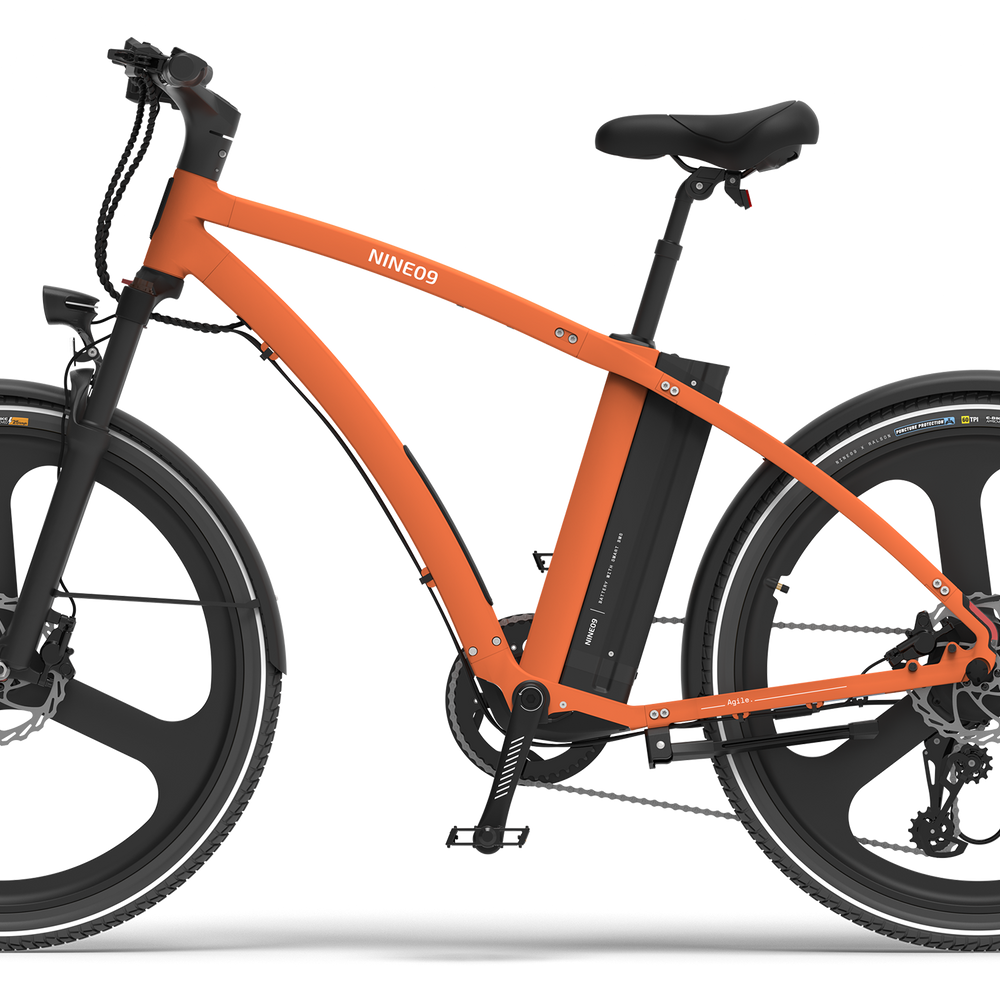

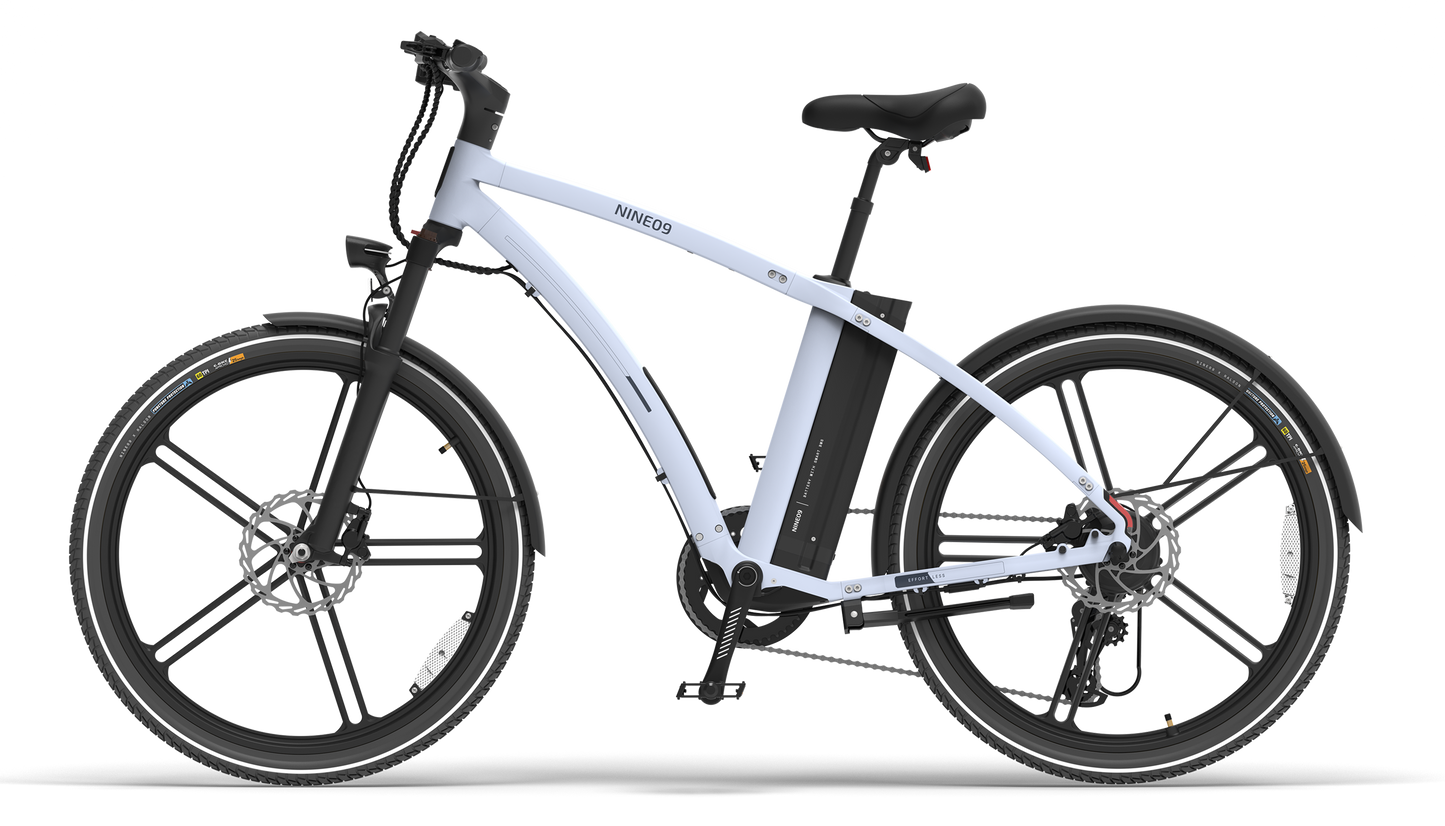

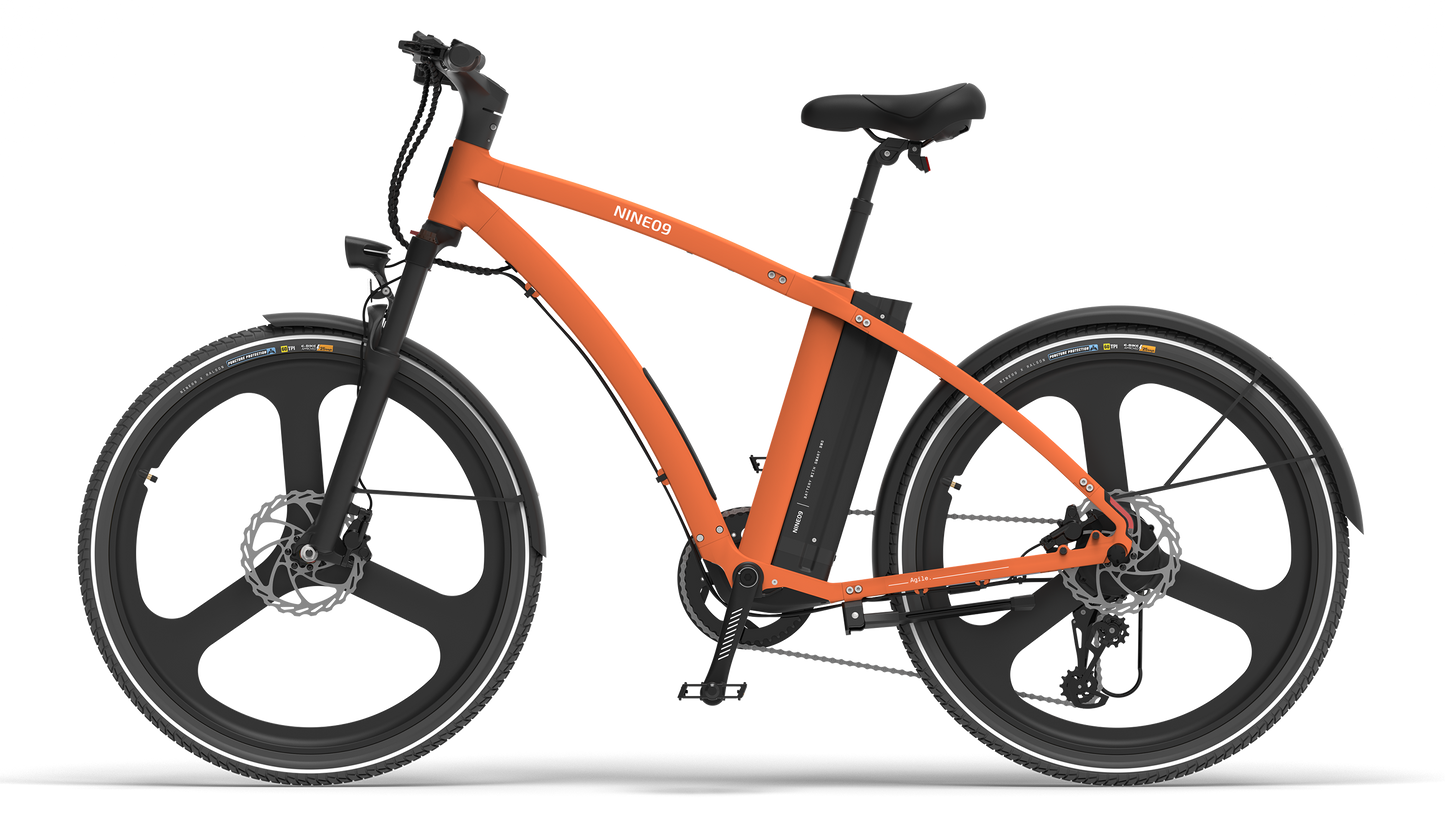

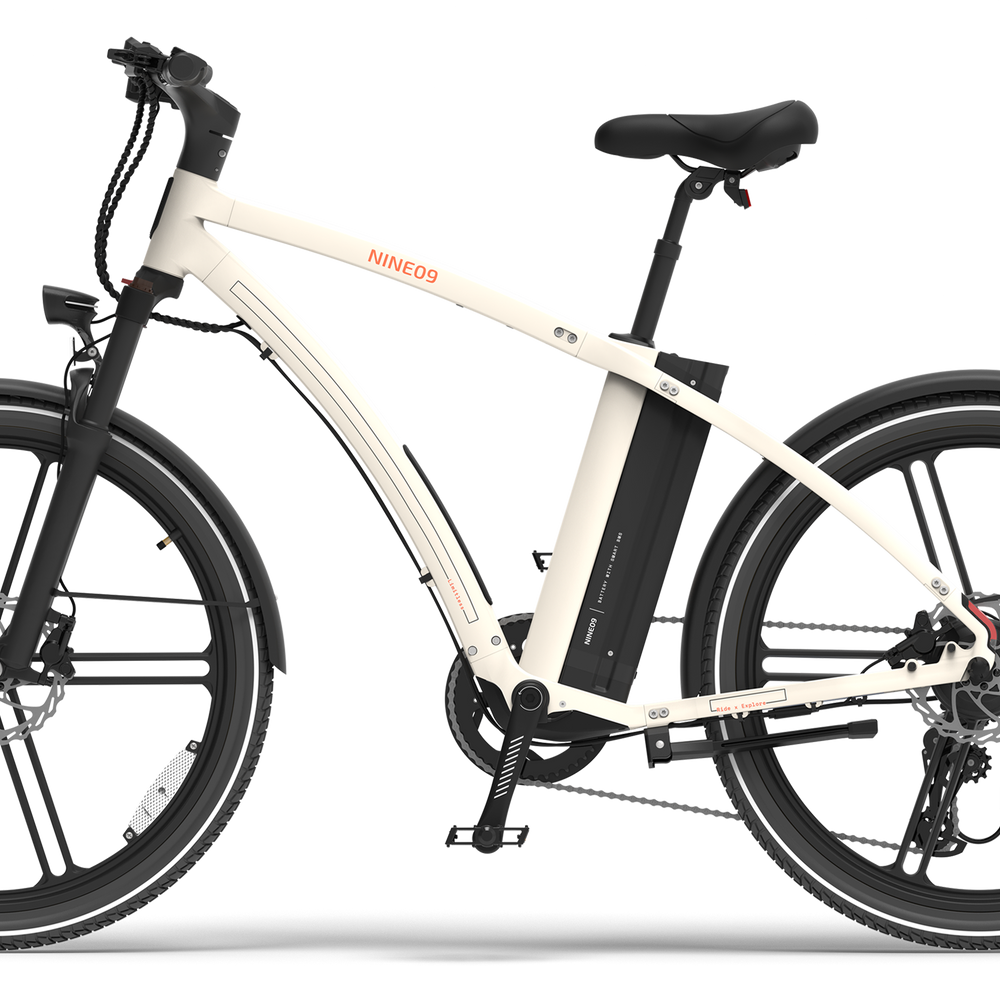

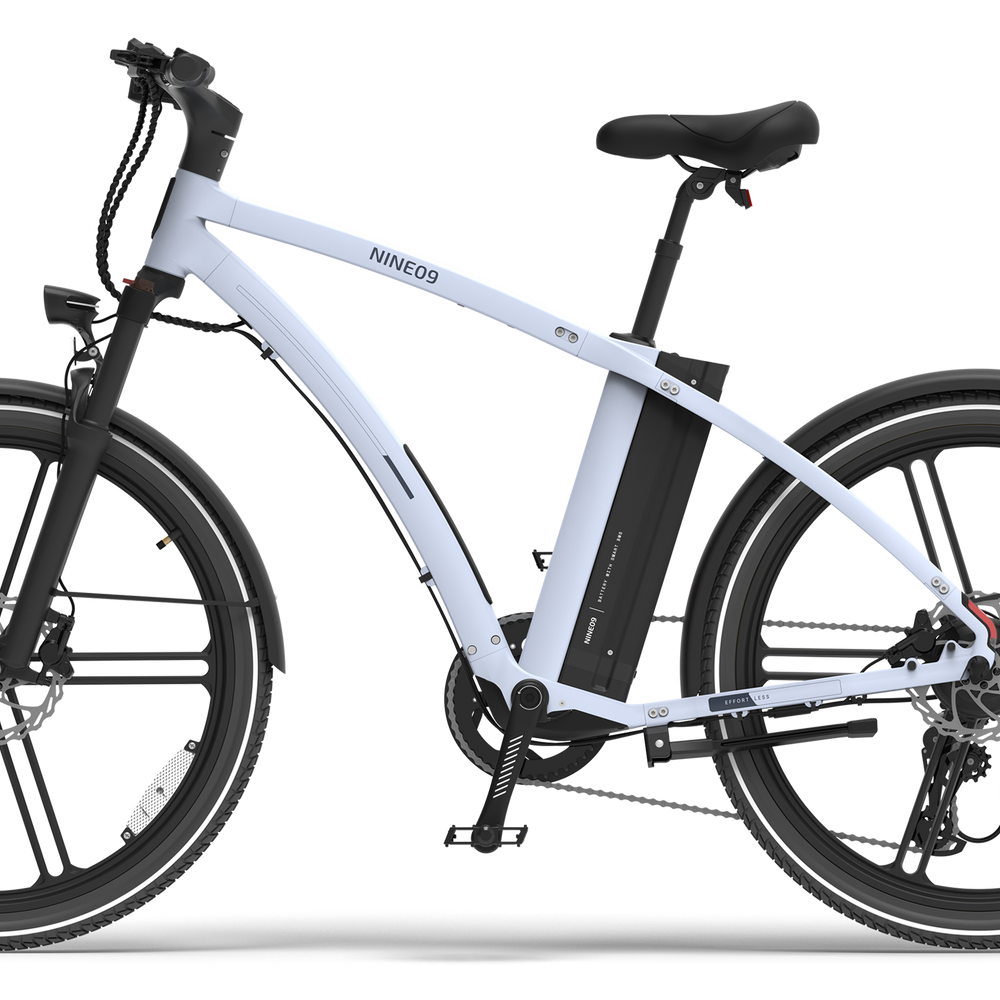

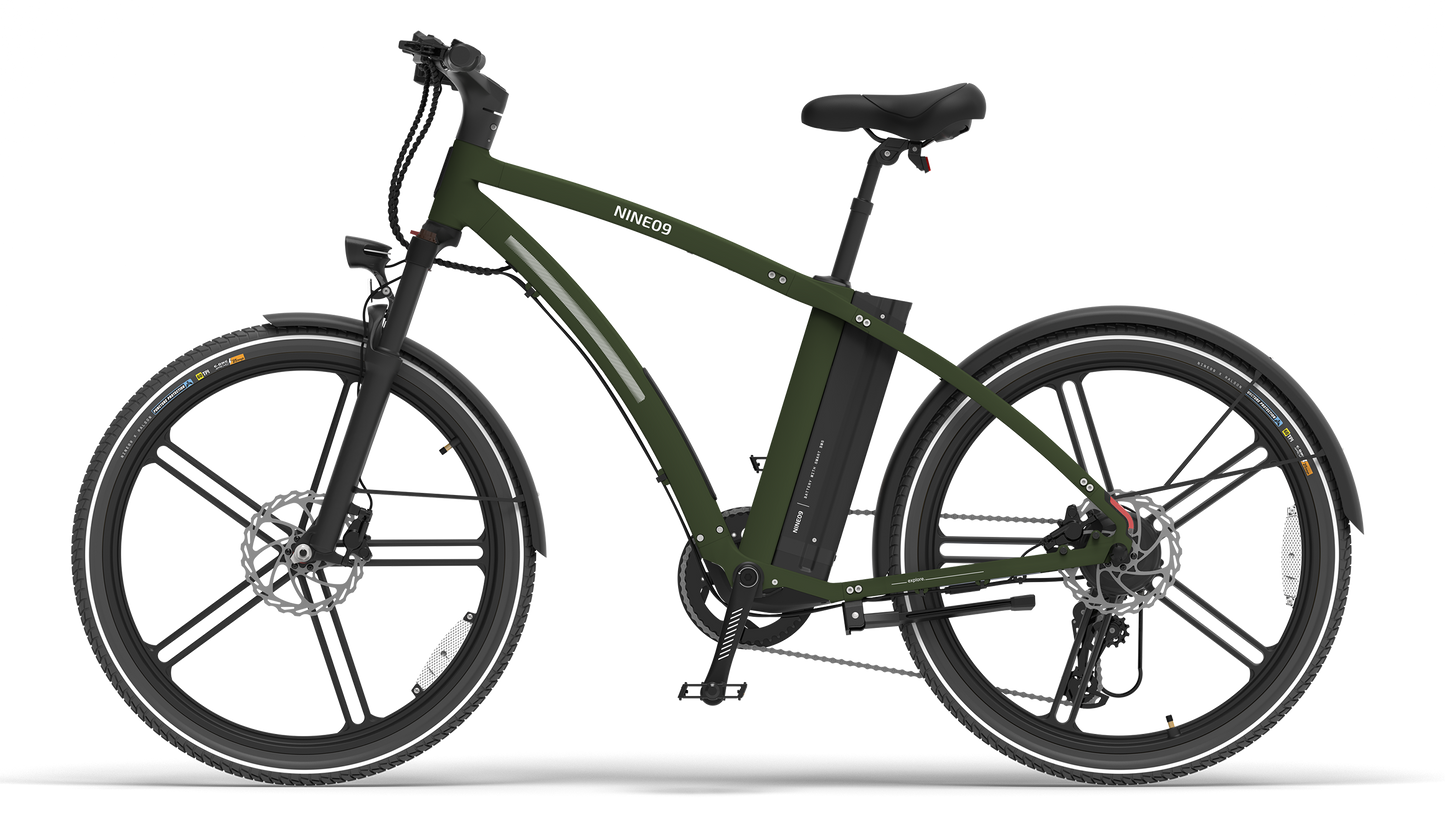

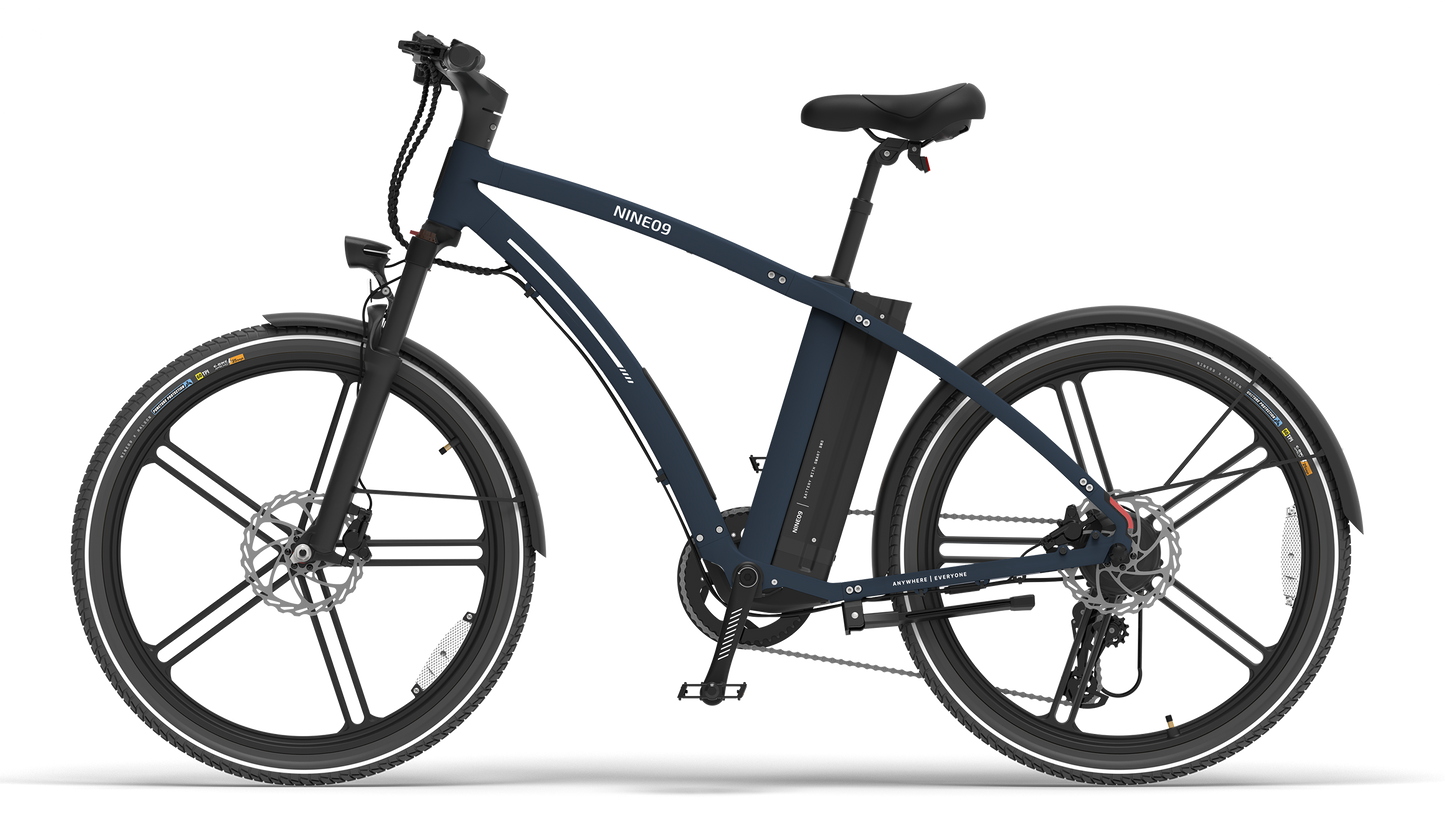

CX01

• Max Speed:25 km/h
• Load Capacity:125 kg (including eBike)
• Power:250W 42Nm Hub Motor
• Range:Up to 99 km*

Motor:Sine Wave Motor Driver

Controller:125 kg (including eBike)

Freewheel:7-Speed Shimano Freewheel with Rear Derailleur

Gear Shifter:microSHIFT Thumb Shifter

Chain:YBN 1/2″ x 3/32″

Chain Wheel:2.38 mm x 170m 46T Alloy Crank WheelShare some information about your product

374Wh Swappable Battery

Aluminum 6063 Casing

IP67 Water Protection

Integrated Battery Level Indicator

• Cells:BAK 18650 Li-Ion Cells
• Fuse:Externally Accessible Automotive Blade Fuse
• Capacity:36V 10.4Ah / 374Wh

Smart BMS with Battery Health Monitoring

Safety Features:

Over voltage and current protection

Short-circuit protection

Cell balancing for enhanced battery efficiency

Over and under temperature protection

42V 4A GaN Charger

IPX7 Water Protection

IP67 Water Protection

Integrated Battery Level Indicator

Safety Features:

• Power Factor Correction
• Over temperature, over current and over voltage protection
• Anti Backflow function
• Automatic CC, CV and Trickle Charging Mode Switching
• Short-circuit protection

Rider Height:

• Medium:5'6" to 5'9"
• Large:5'9" to 6'1"

Wheel Size:

• Medium:26"
• Large: 28"

Tires:

• Medium:26" x 1.95"
• Large:28" x 1.95"

Wheel Details
(options):Magnesium Alloy Wheels

Handlebar:680 mm Aluminum Cockpit with Steel Handles

Headset:Threadless Heatset

Decal Type:Water Transfer Decals with Overcoat

Dual Suspension:100 mm Fork Suspension with Lock In Lock Out,40 mm Seat Post Suspension

Headset:Threadless Heatset

Brake Set:Front & Rear Hydraulic Disc Brakes - Ø160 mm Rotors

Saddle:Vacuum, Memory Foam Saddle

• Display:4.3″ LCD Touchscreen Waterproof (IP67) Display
• Switch:Integrated 5-Button Multi-Function Switch
• Rear Lights:Integrated rear lights with tail, brake, turn, parkingand charging indication features
• Front Light:100 Lux Head Light
• Connectivity:

Bluetooth with Android & iOS Application

Anti-theft device with GPS

• Turn-by-turn Navigation
• Call Control

Multi Mode Pedal Assistance

Theft protection

Ride History

Multi-user access

OTA updates

Remote system lock/unlock
